Scanned .jpg images of the Walker Power Truck Manuals, I hope these help. I also understand that these images may be difficult to ZOOM in, if you would like a LARGE .jpg image sent to you, send me a request.
walkertruck hotmail
you know what goes in that space.

All images below are .jpg files.

Body Parts

Exploded View of Walker Truck Body Parts and assembly.

Body Part Numbers

Part Numbers.

Home   |   Bottom   |   Top
Exploded View Of Truck Body   |   Electrical Drawing
Power Flow   |   Transmission
Service and Operational Manual   |   Spicer Differential
Rebuild Parts Information
Frame Drawing

Exploded View Frame Drawing.

Frame Part Numbers

Part Numbers.

Home   |   Bottom   |   Top
Exploded View Of Truck Body   |   Exploded View Of Truck Frame
Power Flow   |   Transmission
Service and Operational Manual   |   Spicer Differential
Rebuild Parts Information
Electrical Drawing

Electrical Drawing. This is the drawing I used, but do yourself a favor and pull a few extra wires through the tubing from the dash to the engine compartment.

Home   |   Bottom   |   Top
Exploded View Of Truck Body   |   Exploded View Of Truck Frame   |   Electrical Drawing
Transmission   |   Service and Operational Manual   |   Spicer Differential
Rebuild Parts Information

Power Flow Transmission Model 900.

Power Flow 900

This Power Flow 900 is not used in my truck, but I thought I would include it.

Power Flow Transmission Model 985 This is used in My Truck.

Power Flow 985

Power Flow 985 same as in my Truck.. Be VERY careful to align the Driver and Driven pulleys to the proper offset. I was not aware of this setting when I first got my truck running and ruined 2 new belts because they flipped over.
Ken Attkisson had the same problem I had with stripping the gears while truck is stopped and the engine idling the driven pully is still rotating.
Ken has installed a new drive belt Gates #42G4455 which has solved the problem, thanks Ken.

Power Flow Transmission.

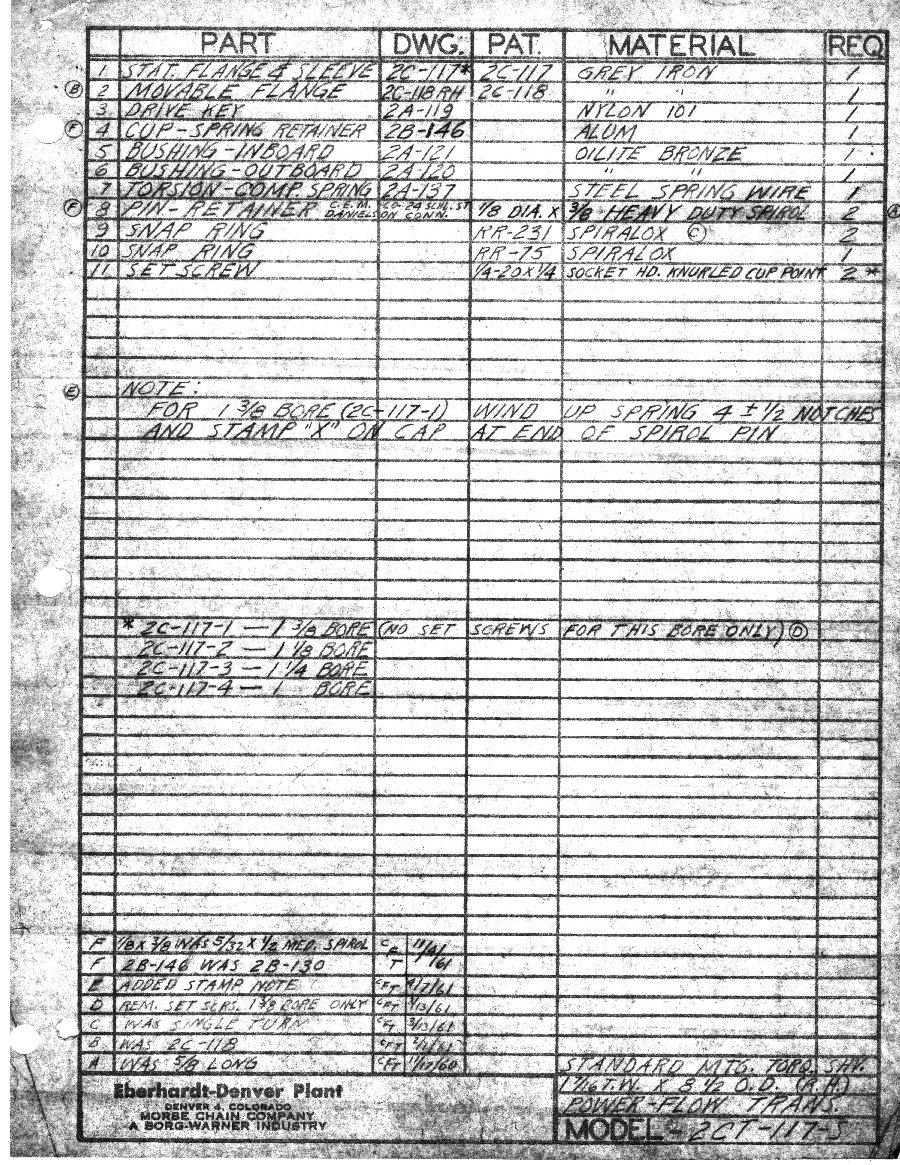

Power Flow Parts List Page 1

Power Flow part numbers, this is all I have, no exploded view..

Power Flow Parts List Page 2

Power Flow part numbers, this is all I have, no exploded view..

Home   |   Bottom   |   Top
Exploded View Of Truck Body   |   Exploded View Of Truck Frame   |   Electrical Drawing
Power Flow   |   Service and Operational Manual   |   Spicer Differential
Rebuild Parts Information
Transmission

For transmission parts,     information,     or service click the link below.
Thanks to Ken Attkisson.
http://www.olympicgear.com   Transmission used in the Walker Power Trucks

Transmission Parts Numbers

Transmission.

Home   |   Bottom   |   Top
Exploded View Of Truck Body   |   Exploded View Of Truck Frame   |   Electrical Drawing
Power Flow   |   Transmission   |   Spicer Differential
Rebuild Parts Information

Manuals.

Maintenance Cover

Maintenance Cover

Maintenance.

Operation.

Operation

Operation.

Service.

Service and Maintenance Page 1

Service and Maintenance.

Service.

Service and Maintenance Page 2

Service and Maintenance.

Service.

Service and Maintenance Page 3

Service and Maintenance.

Home   |   Bottom   |   Top
Exploded View Of Truck Body   |   Exploded View Of Truck Frame   |   Electrical Drawing
Power Flow   |   Transmission   |   Service and Operational Manual
Rebuild Parts Information

Spicer Axle Differential Manual.

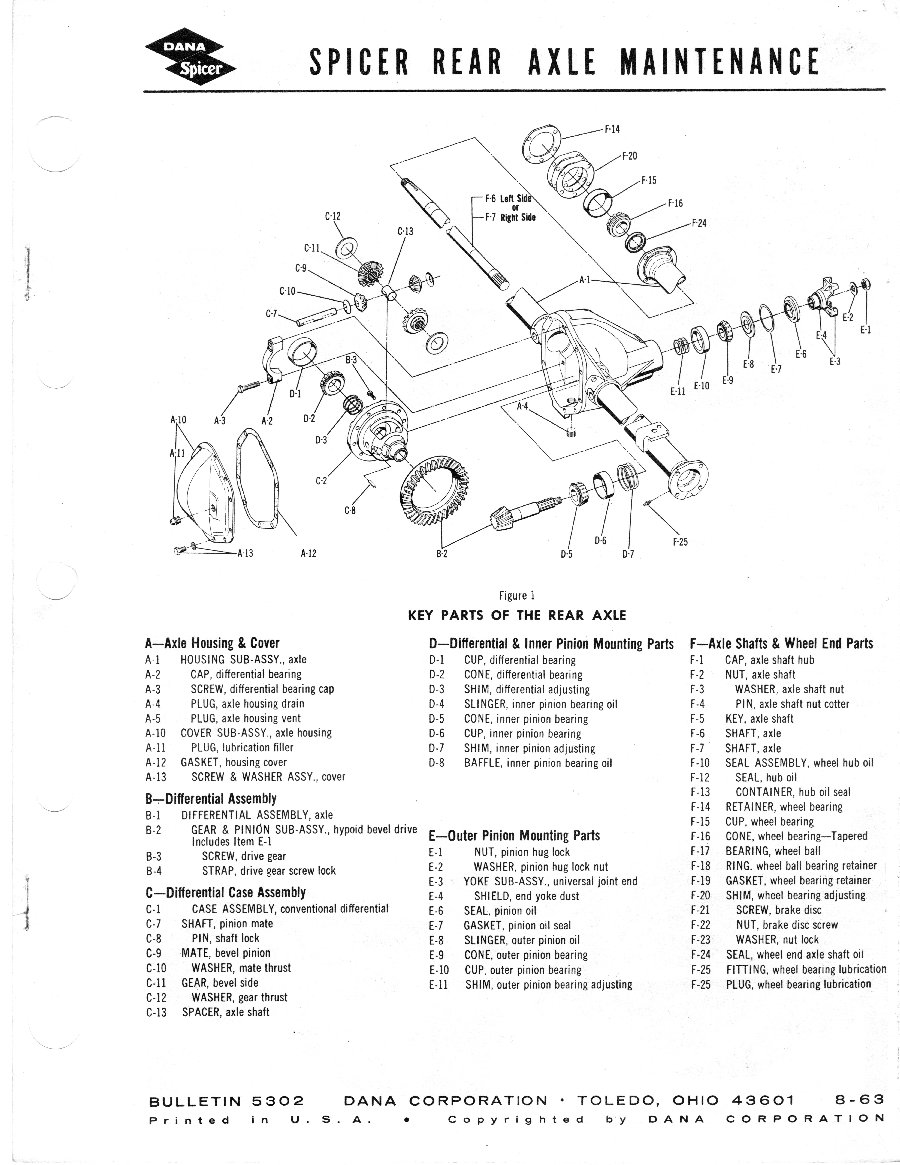

Axle and Differential Cover Page 1

Spicer Manual Page 1.
You may notice the travel of the Walker Truck in forward motion the CROWN GEAR rotates in a anti clock direction thus failing to lubricate the pinion bearings by slinging oil through a channel. I replace the filler plug in the cover with a street elbow and over fill the differential. When I got my truck the pinion bearings were welded the their races and had to be cut out with a torch.

Spicer Axle Differential Manual.

Axle and Differential Page 2

Spicer Manual Page 2.

Spicer Axle Differential Manual.

Axle and Differential Page 3

Spicer Manual Page 3.

Spicer Axle Differential Manual.

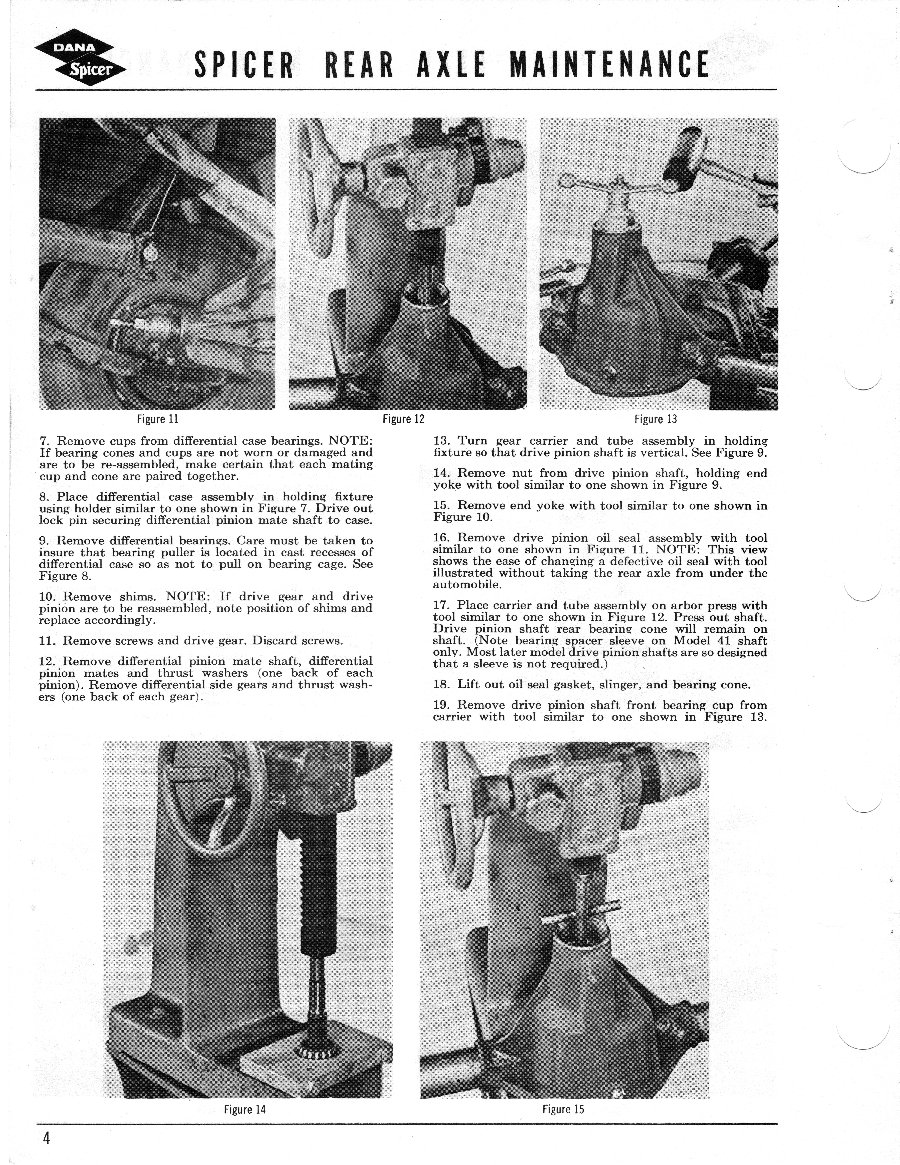

Axle and Differential Page 4

Spicer Manual Page 4.

Spicer Axle Differential Manual.

Axle and Differential Page 5

Spicer Manual Page 5.

Spicer Axle Differential Manual.

Axle and Differential Page 6

Spicer Manual Page 6.

Spicer Axle Differential Manual.

Axle and Differential Page 7

Spicer Manual Page 7.

Spicer Axle Differential Manual.

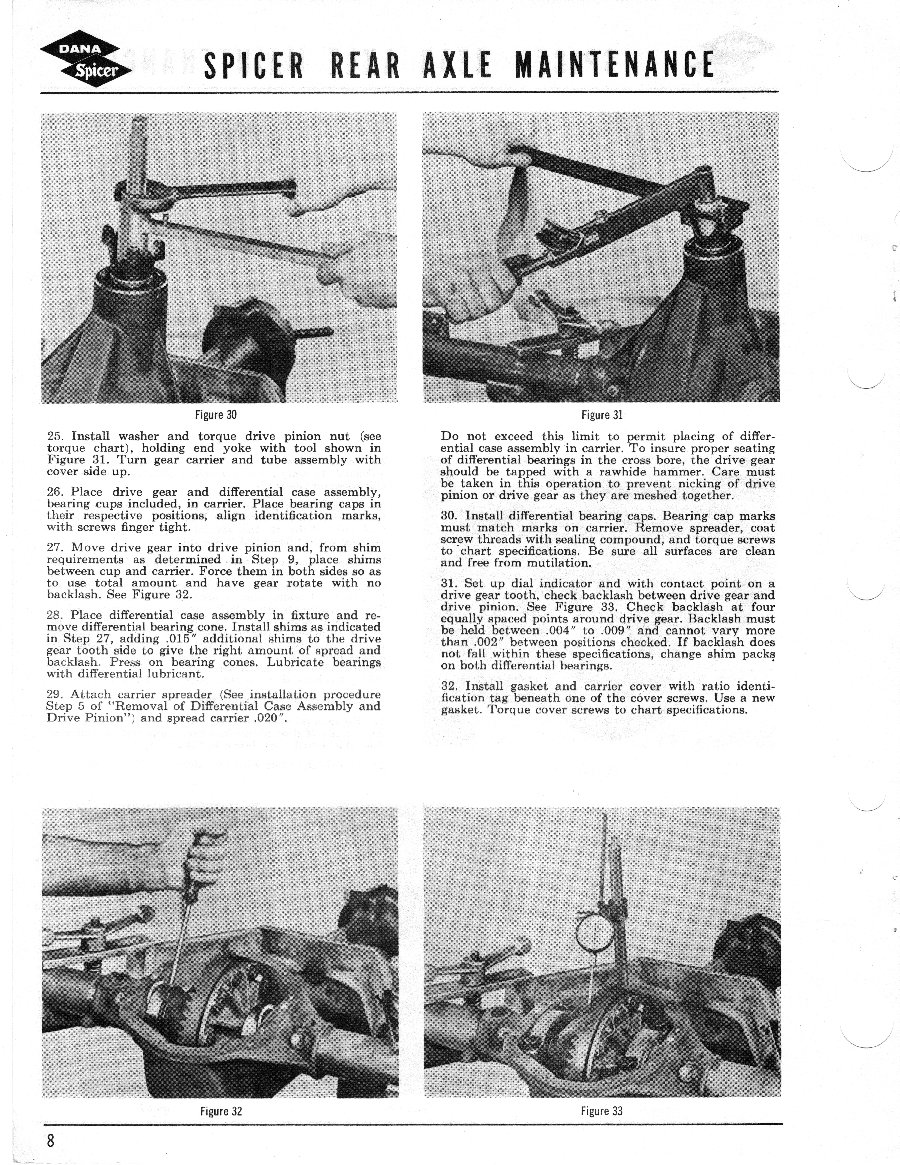

Axle and Differential Page 8

Spicer Manual Page 8.

Spicer Axle Differential Manual.

Axle and Differential Page 9

Spicer Manual Page 9.

Walker Power Truck Replacement Parts

Transmission

For transmission parts,   information,  or service click the link below.
http://www.olympicgear.com   Transmission used in the Walker Power Trucks
Thanks to Ken Attkisson.

Brake Parts

The brake parts (Wheel cylinders, brake pads, springs, etc.) can be purchased from:
British Parts Northwest
4105 SE Lafayette Hwy.
Dayton, OR 97114
Phone: 503-864-2001
http://www.bpnorthwest.com   Brake Parts used in the Walker Power Trucks Thanks Steve Walker

Master Cylinder

The Girling master cylinder rebuild kit was purchased from: Pegasus Auto Racing
2475 South 179th St.
New Berlin, WI 53146
800,688,6946
http://www.pegasusautoracing.com   Master Cylinder used in the Walker Power Trucks
Kit P/N 3504- .75
Thanks Steve Walker

Wheel Cylinder

Spitfire 62 to 70, GT6 MkI GWC1208
Wheel Cylinder Hold Down Kit, Spitfire, GT6, MGC SP2861X
Brake Shoe Return Spring Set Spitfire GT6 105689-90
Brake Shoe Set Spitfire ABS006
Thanks Steve Walker

Leaf Spring

The rubber bushings that go in the leaf springs can be purchased from:
Michigan Truck Spring
3649 Wolf Road
Saginaw, Wi 48601
989-755-06561
Bushing P/N HB-850
http://www.truckspring.com   Leaf Springs used in the Walker Power Trucks
Thanks Steve Walker
